CGZ-01
intelligent converter

CGZ-02A
intelligent converter

CGZ-02B
intelligent converter

CGZ-01A
intelligent converter


Outline Dimension & Weigh

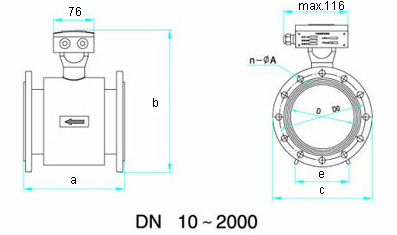

Separated Modelt

Diamter Specified Pressure Outline Dimension of Flowmerer Dimension of Flange Weight
(mm) (MPa) a b c e D Dกฃ n กม A (kg)
10 4.0 200 187 90   10 60 4กม 14 4
15 4.0 200 189 95 15 65 4กม 14 4
20 4.0 200 194 105 20 75 4กม 14 4
25 4.0 205 204 115 25 85 4กม 14 5
32 4.0 205 216 140 32 100 4กม 18 7
40 4.0 205 221 150 40 110 4กม 18 8
50 4.0 205 243 165 50 125 4กม 18 10
65 1.6 205 253 185 65 145 4กม 18 15
80 1.6 205 278 200 80 160 8กม 18 15
100 1.6 255 298 220 100 180 8กม 18 20
125 1.6 255 318 250 125 210 8กม 18 22
150 1.6 306 358 285 150 240 8กม 22 33
200 1.0 357 416 340 200 295 8กม 22 43
250 1.0 450 490 395 310 250 350 12กม 23 82
300 1.0 500 510 445 310 300 400 12กม 23 100
350 1.0 550 571 505 450 350 460 16กม 23 121
400 1.0 600 631 565 450 400 515 16กม 26 145
450 1.0 620 681 615 450 450 565 20กม 26 210
500 1.0 720 730 670 450 500 620 20กม 26 207
600 1.0 812 836 780 610 600 725 20กม 30 250
700 1.0 910 944 895 610 700 840 24กม 30 350
800 1.0 1060 1055 1015 610 800 950 24กม 35 460
900 1.0 1100 1170 1115 700 900 1050 28กม 35 550
1000 1.0 1200 1280 1230 700 1000 1160 28กม 35 680
1200 0.6 1200 1460 1405 700 1200 1340 32กม 35 770
1400 0.6 1400 1823 1524 815 1400 1560 36กม 36 1230
1600 0.6 1600 2033 1726 915 1600 1760 40กม 36 1550
1800 0.6 1800 2227 1926 1023 1800 1970 44กม 39 2080
2000 0.6 2000 2428 2170 1123 2000 2180 48กม 42 2600

Note: Size e is suitable for diameter over DN 250. Stainless steel flange is available to the diameter of flange below DN250 .The model of stainless steel case is 1Cr18Ni9Ti.

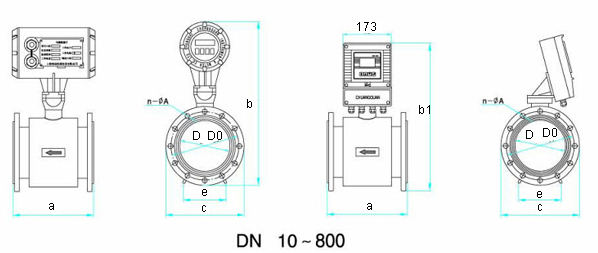

Integrated form

Diamter Specified Pressure Outline Dimension of Flowmerer Dimension of Flange Weight
(mm) (MPa) a b b1 c e D Dกฃ n กม A (kg)
10 4.0 200 320 374 90   10 60 4กม 14 6
15 4.0 200 322 377 95 15 65 4กม 14 6
20 4.0 200 327 382 105 20 75 4กม 14 6
25 4.0 205 337 392 115 25 85 4กม 14 7
32 4.0 205 350 404 140 32 100 4กม 18 9
40 4.0 205 354 409 150 40 110 4กม 18 10
50 4.0 205 376 431 165 50 125 4กม 18 12
65 1.6 205 386 441 185 65 145 4กม 18 17
80 1.6 205 411 466 200 80 160 8กม 18 17
100 1.6 255 431 486 220 100 180 8กม 18 22
125 1.6 255 455 510 250 125 210 8กม 18 24
150 1.6 306 491 546 285 150 240 8กม 22 35
200 1.0 357 550 604 340 200 295 8กม 22 45
250 1.0 450 580 650 395 310 250 350 12กม 23 84
300 1.0 500 643 698 445 310 300 400 12กม 23 102
350 1.0 550 704 759 505 450 350 460 16กม 23 123
400 1.0 600 764 820 565 450 400 515 16กม 26 147
450 1.0 620 814 870 615 450 450 565 20กม 26 212
500 1.0 720 860 915 670 450 500 620 20กม 26 209
600 1.0 812 968 1024 780 610 600 725 20กม 30 252
700 1.0 910 1077 1132 895 610 700 840 24กม 30 352
800 1.0 1060 1188 1243 1015 610 800 950 24กม 35 462

Note: Size "e" is suitable for the diameter over DN250. Integrated form is fit for small-medium sized diameter.
