Specification
Diameter |
DN10 ¡« 2000 |
DN10 ¡« 2000 |
Electrode Material |
1Cr18Ni9Ti,0Cr18Ni12Mo2Ti,Hc,Ti,Ni,Ta,Pt |
1Cr18Ni9Ti,0Cr18Ni12Mo2Ti,Hc,Ti,Ni,Ta,Pt |
Lining Material |
PTFE, Neoprene, Polyurethane |
PTFE, Neoprene, Polyurethane |
Medium |
Conduct electricity liquid(including solid-liquid two -phase suspended liquids) |
|
Measured error |
+0.2%/+0.5%+1.0 of flow (according to the diameter) |
|
Medium conductivity |
>5¦ÌS/cm(water >20¦ÌS/cm) |
>5¦ÌS/cm(water >20¦ÌS/cm) |
Velocity rang |
0.3 ¡« 12 m /s(to select different flow unit) |
|
Connection Flanges Standard |
GB9115 (Chinese Standard) |
GB9115 (Chinese Standard) |
Medium Temperature |
-25oC ¡« +150oC(Latex Lining 65 oC) |
-25oC ¡« +150oC(Latex Lining 65 oC) |
Specified Pressure |
0.6MP a ¡« 4.0MPa(higher pressure flowmeter could be ordered specially) |
|

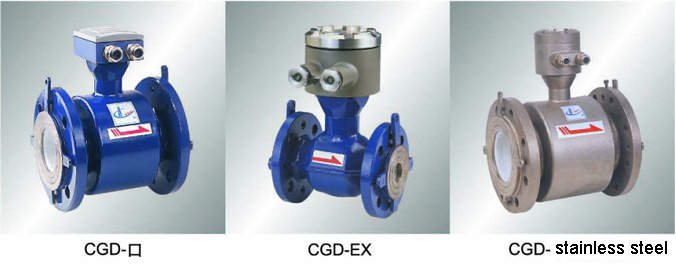

Transducer Model |
CGD |
CGD |
Protection Grand |
IP65;IP67;IP68 (Separated type) |
IP65;IP67;IP68 (Separated type) |

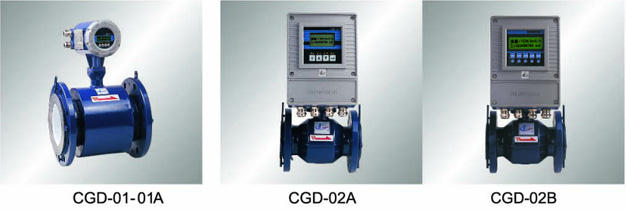

Converter Model |
CGZ-01/CGZ -01A |
CGZ -02A /CGZ02B |
Output Signal |
0-10mA or 4-20 mA output , frequency/pulse output, no source contact point output |
|
Communication |
RS485 |
RS485 |
Application |
acid, alkali, water supply & sewerage, food, paper pulp, ore pulp and so on |
|
Display |
flow velocity, flow, percentage, conductivity, accumulated flow, accident alarm |
|
Language |
Chinese or English |
Chinese or English |
Power supply |
220VAC, 24VDC |
220VAC, 24VDC |
Setting Modality |
Separated Model or Integrated Model |
|
Explosion-proof attestation |
Exdm(ib) ¢ò BT5-T6(for separated) |
Exdm(ib) ¢ò BT5-T6(for separated) |
Related Equipment |
LB910P Zener safety grid |
LB910P Zener safety grid |
Selected Object |
|
Programmend magnetic stick (for CGZ -01A /02B) |
Enterprise Standard |
Q/SWSM1-2002 |
Q/SWSM1-2002 |

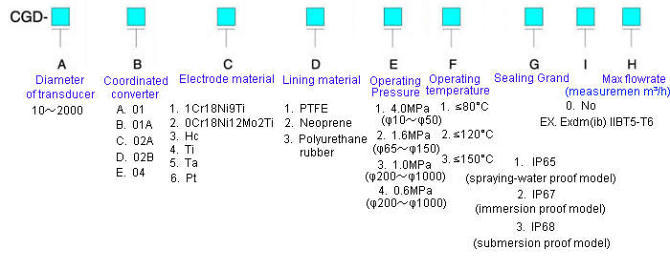

Model Code Specification
